Model Type:Input Module
Model Number:1746-IH16
Manufacturer:Allen Bradley
Signal Type:Current Sinking
Power Supply:DC
Input Voltage Range:24 VDC
Nominal Input Current:10 mA
Off-State Input Voltage:3 VDC
Isolation Voltage:500 VDC
Operating Temperature Range:-20°C to +60°C
Humidity Range:5% to 95% non-condensing
Shock Resistance:30 G
Enclosure Type:Open
Mounting Type:Chassis

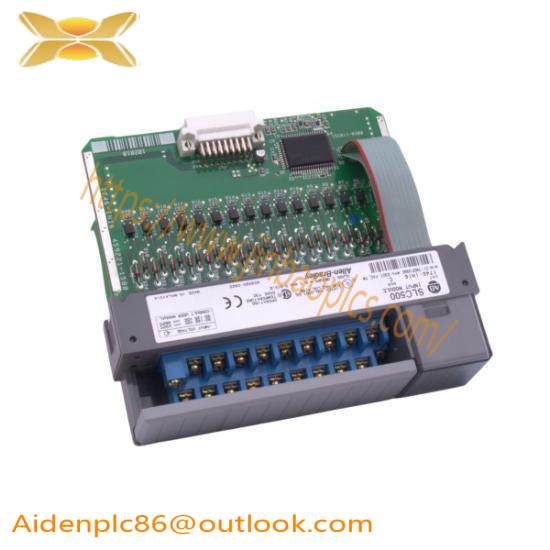

The Allen Bradley 1746-IH16 is engineered to withstand harsh industrial environments, ensuring reliable operation in demanding conditions. With its robust design, it seamlessly integrates into existing control systems, enhancing their functionality.
Each channel is equipped with a sinking capability, enabling it to pull the input voltage down when active, which is essential for certain types of sensors and switches. This feature ensures accurate and consistent signal interpretation.
This module supports a wide range of input voltages from 5 to 24 volts DC, allowing for compatibility with various industrial sensors and actuators. Its low current consumption per channel makes it efficient and cost-effective for large-scale installations.
The 1746-IH16 features excellent isolation characteristics, ensuring that noise and interference are minimized, thus improving the overall system reliability. Its open type enclosure provides easy access for maintenance and configuration without compromising on the necessary protection levels.
With support for both communication circuits and backplane isolation, this module offers enhanced safety and reliability. It’s compatible with Allen-Bradley’s extensive line of control products, providing a seamless integration solution for complex automation systems.
