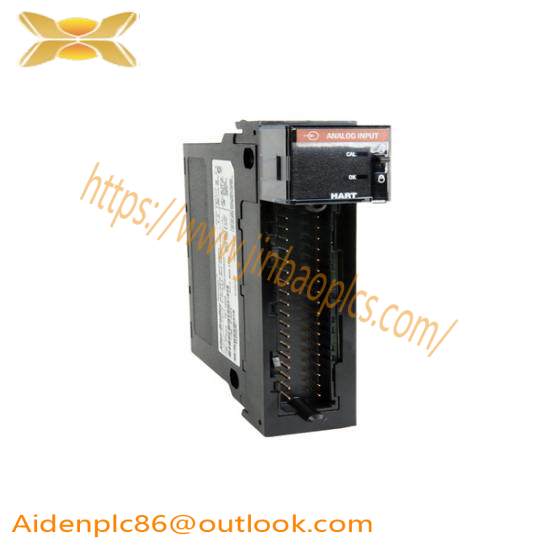

AB 1756-IF16H ControlLogix Analog Input Module

Manufacturer:Allen Bradley

Model:1756-IF16H

Module Type:Analog Input

Channels:16

Differential Voltage/CURRENT Input:Yes

Data Formats:Choice of three

Input Ranges:Multiple current and voltage options

Module Filter:Standard

Real-time Sampling:Yes

Fault Detection:Under range, over range

Process Alarms:Rate, wire-off

Communication Protocol:HART

Power Consumption:6.2 Watts

Temperature Range:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection:Ethernet/IP Bridge

Ethernet Compliance:802.3

USB Port:Included

Power Supply:3 MA At 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Enclosure Type:Open Type

Isolation:30 V Continuous

    The 1756-IF16H ControlLogix Analog Input Module is a high-performance component designed for seamless integration into complex industrial control systems. It offers exceptional accuracy and reliability, making it ideal for applications requiring precise data acquisition, such as process control, machine monitoring, and quality assurance.

    Featuring advanced signal processing capabilities, this module ensures reliable data transmission over DeviceNet or EtherNet/IP networks, enhancing system interoperability and reducing the complexity of integration. Its wide operating range, from 4 to 20 mA or 0 to 10 V, accommodates various sensor inputs, enabling flexible deployment across different industries.

    With a compact design that measures 104 mm x 90 mm x 30 mm and weighs only 0.2 kg, the 1756-IF16H is highly portable and can be easily installed in tight spaces without compromising performance. The module is equipped with robust environmental protections, ensuring it performs reliably in harsh industrial settings with temperature ranges from -10°C to +55°C and humidity levels up to 95% RH without condensation.

    For enhanced user convenience and system maintenance, the 1756-IF16H comes with a modular design, allowing for easy replacement and upgrade without disrupting ongoing operations. Its compatibility with a wide range of communication protocols, including DeviceNet and EtherNet/IP, facilitates seamless integration with other Rockwell Automation components and third-party devices, optimizing system scalability and flexibility.

    To meet stringent industry standards, the 1756-IF16H is certified by UL and CE, ensuring its safety and reliability. This certification guarantees that the module adheres to international safety and quality standards, providing peace of mind for users in various sectors.
