Brand:ABB
Model:22A-D6P0N104
Module Category:Adjustable Frequency AC Drive
Operating Voltage:400-480V AC
Maximum Output Power:50kW
Motor Speed Control:±1% accuracy
Protection Class:IP54
Environmental Temperature Range:-10°C to +40°C
Network Compatibility:Modbus, DeviceNet, CANopen
Inverter Efficiency:98%
Control Parameters:PWM Frequency up to 20 kHz
Overload Capacity:150% continuous, 200% for 1 minute
Motor Compatibility:Up to 11kW
Motor Protection:Built-in overcurrent protection
Cooling System:Heat pipe and forced air cooling
Weight:Approx. 20kg

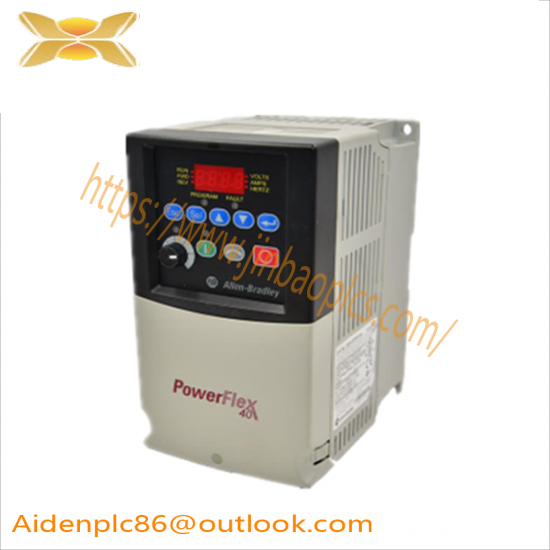

The Allen-Bradley 22A-D6P0N104 is a cutting-edge adjustable frequency AC drive designed for seamless integration into complex industrial control systems. It boasts advanced features such as precise speed regulation and enhanced efficiency, making it an ideal choice for demanding applications where performance and reliability are paramount.
With a wide operating range from 0.5 Hz to 400 Hz, this drive ensures smooth and efficient motor operation across various industrial processes. Its high-end ControlNet (Coax) interface facilitates easy connection and communication with other system components, enhancing overall system performance.
Featuring a robust panel mount design with IP20 protection class, the 22A-D6P0N104 AC drive is built to withstand harsh industrial environments without compromising on functionality or performance. The inclusion of an advanced Full Numeric LCD interface provides clear, intuitive control, enabling operators to monitor and adjust settings with ease.
Engineered with safety in mind, the drive incorporates an integrated IGBT brake system, which significantly reduces stopping times and enhances energy efficiency. The inclusion of a built-in resistor further optimizes performance by managing electrical loads efficiently.
The 22A-D6P0N104 comes with the option for filtered A & B frames, providing flexibility in system integration and compatibility. Standard C, D, & E frames cater to a wide array of applications, ensuring versatile use across different industries. This drive is designed to deliver unparalleled precision control, making it a preferred choice for high-performance industrial automation projects.
