Type:IGBT Module
Manufacturer:ABB
Model:AGDR-61C FS450R17KE3
Part Number:64783831
Power Rating:450kW
Current Rating:61A
Switching Frequency:17kHz
Operating Temperature Range:-40°C to +170°C
Package Size:170mm x 100mm
Cooling Method:强迫风冷
Input Voltage:DC 1500V
Output Voltage:Up to 1700V
Insulation Resistance:≥ 10MΩ
Failure Rate:< 1E-6/h

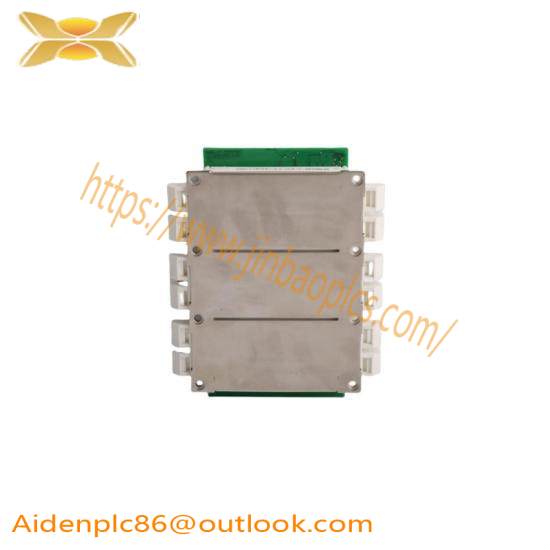

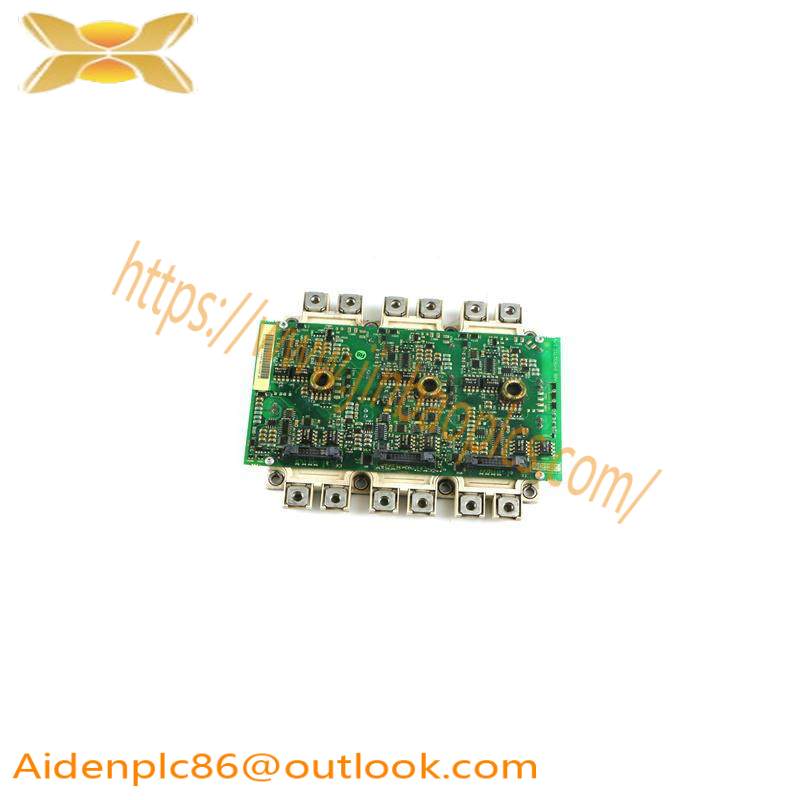

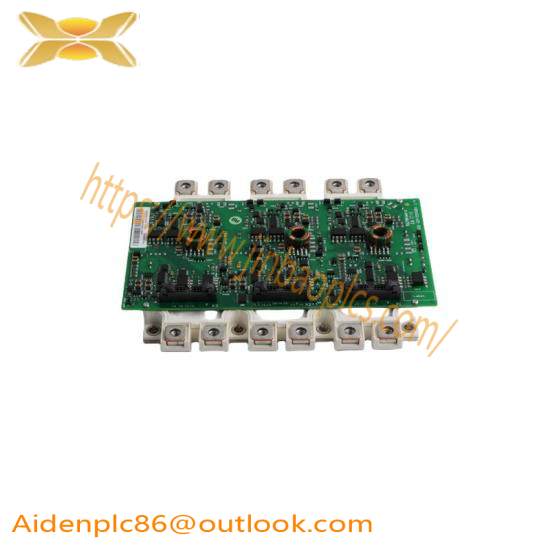

The ABB AGDR-61C FS450R17KE3 IGBT MODULE is a high-performance component engineered for robust operation in a wide range of industrial applications. Its advanced design ensures efficient power conversion and minimal energy loss, making it ideal for scenarios requiring precise control and reliability.
Featuring a compact and rugged construction, this module is equipped with a thermal pad and forced air cooling system to maintain optimal operating temperatures, ensuring continuous peak performance even under extreme conditions.
With a rated current of 610 A and a rating voltage of 1200 V, the AGDR-61C FS450R17KE3 is capable of handling heavy-duty loads while maintaining high efficiency. Its switching frequency of 450 kHz enables swift and accurate response to varying load demands.
Engineered for reliability, this IGBT module boasts an insulation resistance of ≥10 MΩ at 500 VDC (RMS), providing exceptional protection against electrical disturbances. It is suitable for use in a broad temperature range from -40°C to +170°C, making it versatile for various industrial environments.
Designed with ease of integration in mind, the ABB AGDR-61C FS450R17KE3 IGBT MODULE is compatible with a wide array of control systems and applications, offering seamless integration into existing industrial setups without compromising on performance.
