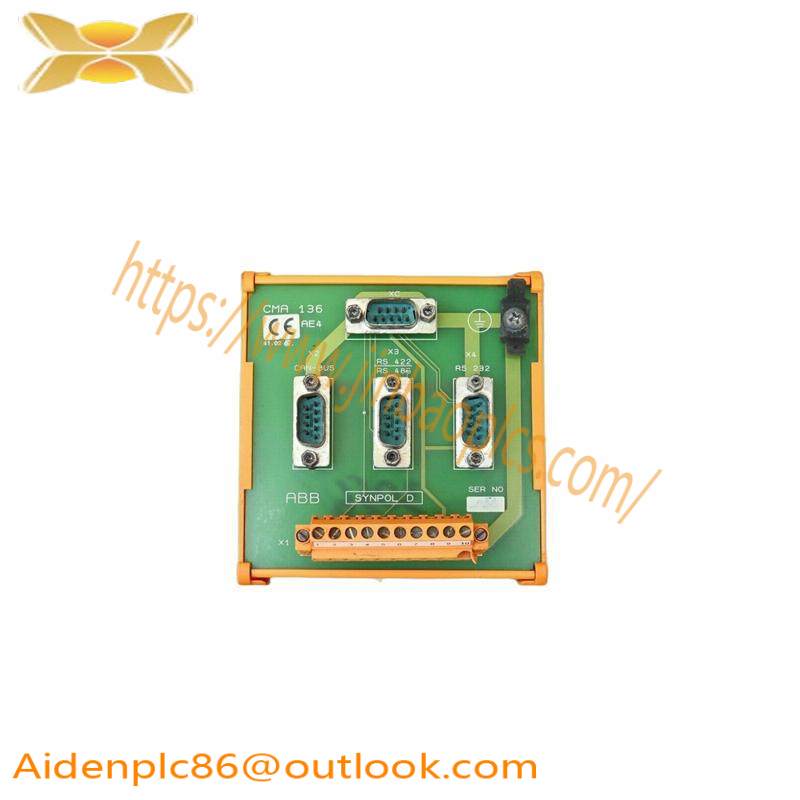

ABB CMA136 3DDE300416 Generator Relay Terminal Board

Model:CMA136 3DDE300416

Type:Generator Relay Terminal Board

Manufacturing Origin:ABB

Series:CMA136

Relay Type:3DDE

Board Size:Standard

Connection Ports:Multiple

Voltage Rating:Up to 400V AC

Current Rating:Up to 100A

Protection Levels:Class I

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Material:High-grade aluminum alloy with corrosion-resistant coating

Dimensions:180mm x 140mm x 20mm

Weight:Approx. 1.5kg

Operating Frequency:50Hz or 60Hz

Input Resistance:2kΩ

Output Capacitance:1μF

    The ABB CMA136 3DDE300416 Generator Relay Terminal Board is engineered to provide unparalleled reliability and efficiency in industrial power management. This high-performance component is specifically tailored for use in generator control systems, ensuring seamless integration and optimal operation.

    Featuring advanced high-speed relays, this terminal board offers swift response times, crucial for preventing equipment damage during voltage fluctuations or system faults. Its robust IP20 protection rating safeguards against dust and light splashes, ensuring dependable operation in various industrial environments.

    With support for RS485 communication interfaces, the board facilitates easy connectivity to other devices within the power system, enabling comprehensive monitoring and control functionalities. This feature is particularly advantageous for implementing remote diagnostics and maintenance, enhancing operational efficiency.

    Designed with a focus on load capacity, the ABB CMA136 3DDE300416 can handle up to 10 Amps, making it suitable for a wide range of applications. Whether you’re dealing with smaller generator setups or larger, more complex systems, this terminal board provides the necessary flexibility and power handling capabilities.

    Built using high-quality materials and adhering to rigorous industry standards, the ABB CMA136 3DDE300416 Generator Relay Terminal Board is a testament to ABB‘s commitment to delivering top-tier products. Its reliability, durability, and ease of integration make it an ideal choice for enhancing the performance and safety of industrial power systems.
