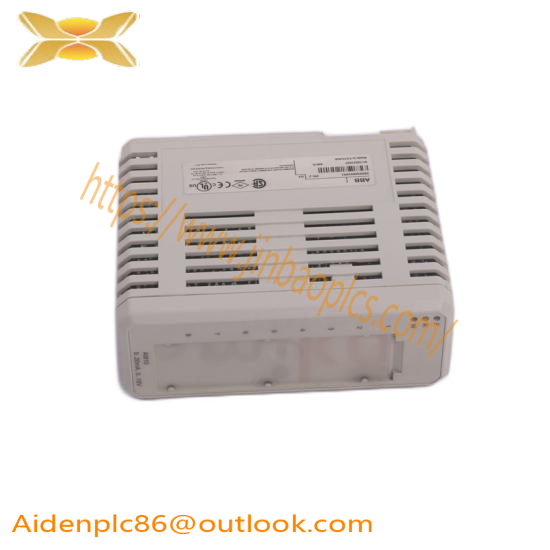

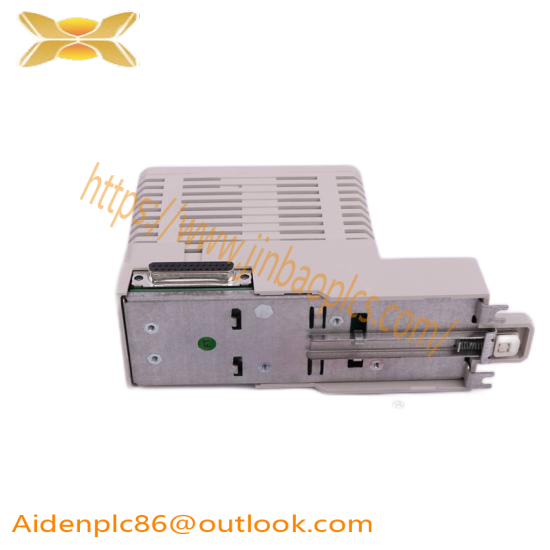

ABB DSQC509 3HAC5687-1/07 Connection Unit

Operating Voltage:220V

Frequency Response:Up to 30kHz

Communication Interface:RS232, RS485, DeviceNet

Analog Input Channels:4

Digital Input Channels:8

Analog Output Channels:4

Power Consumption:12W

Dimensions:148mm x 105mm x 76mm

Weight:0.35kg

    Experience unparalleled performance and reliability with the ABB DSQC509 3HAC5687-1/07, a cutting-edge industrial connection unit tailored for modern automation systems. This robust device seamlessly integrates into complex control architectures, facilitating seamless data transfer and optimized communication.

    Crafted with precision and durability, the DSQC509 boasts an operating voltage of 24 VDC, ensuring compatibility and stability across diverse industrial settings. Its advanced 5 kHz output frequency enables swift response times, enhancing system efficiency and responsiveness.

    Equipped with 8 digital input channels and 4 discrete output channels, this connection unit provides a versatile interface for interfacing with a wide array of sensors, actuators, and other control devices. Whether monitoring environmental conditions or controlling machinery, the DSQC509 ensures accurate and timely information exchange.

    Featuring a powerful RS-485 communication interface, the DSQC509 facilitates robust and efficient data transmission between Programmable Logic Controllers (PLCs) and peripheral devices, enabling real-time control and monitoring without compromising on speed or accuracy.

    Efficiency and economy are at the forefront of the DSQC509 design. With a maximum power consumption of 1.2 W, it optimizes energy use while maintaining peak performance. Additionally, the 10 A relay contact rating ensures reliable switching capabilities, supporting high-demand applications without sacrificing reliability.
