Model Type:Discrete Output Module
Number of Channels:16
Input Voltage Category:24VDC
Output Voltage Range:20.4-26.4VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating at 60 DEG C:Continuous Current Per Output: 0.25 A, Continuous Current Per Module: 4 A
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC, Processor: SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Relative Humidity

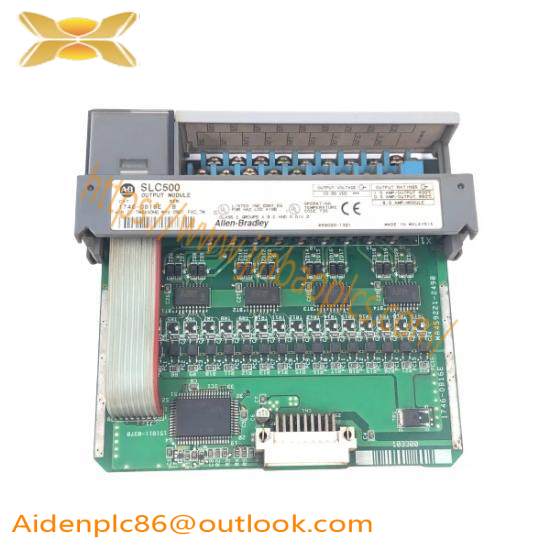

The Allen Bradley 1746-OB16E Protected Output Module is engineered to provide unparalleled reliability in industrial automation systems. This module is specifically designed to ensure safety and longevity in harsh environments.
With its robust construction, the 1746-OB16E can withstand extreme temperatures ranging from 0 to 60°C, making it suitable for a wide variety of industrial applications.
Featuring 16 discrete output channels, each capable of sourcing up to 0.25 A at 60°C, this module offers flexibility and precision in controlling actuators, relays, and other devices within an industrial setup.
The isolation levels of 500 VDC for communication circuits and 1500 VAC for backplanes further enhance the module’s safety and prevent unwanted electrical interactions, ensuring the integrity of your control system.
The Allen Bradley 1746-OB16E is part of the renowned SLC 500 series, known for its advanced functionality, compatibility with Allen-Bradley PLCs, and seamless integration into existing control systems.
This protected output module is an essential component for any industrial control system aiming for high performance, safety, and reliability. It is designed to minimize maintenance needs and downtime, contributing significantly to operational efficiency.
