Brand:Allen-Bradley
Series:Kinetix 6000
Module Type:Axis Module
Input Voltage Range:324-528V rms, 3-phase
Nominal Voltage:360 / 480V
Voltage Class:400V
Power Dissipation:57-126 Watts
Continuous Output Power (Nom):3.9 kW
Peak Current (RMS):8.6 A
Continuous Output Current (RMS):6.1 A
Efficiency:98%
Internal Shunt Peak Power:5.6 KW
Internal Shunt Continuous Power:50W
Capacitance:150 ?F
Capacitive Rating:200,000 A (rms) symmetrical
PWM Frequency:8 kHz
Velocity Loop Bandwidth Frequency:500 Hz
Current Loop Bandwidth Frequency:1300 Hz
Weight:22.3 lbs (10.1 kg)

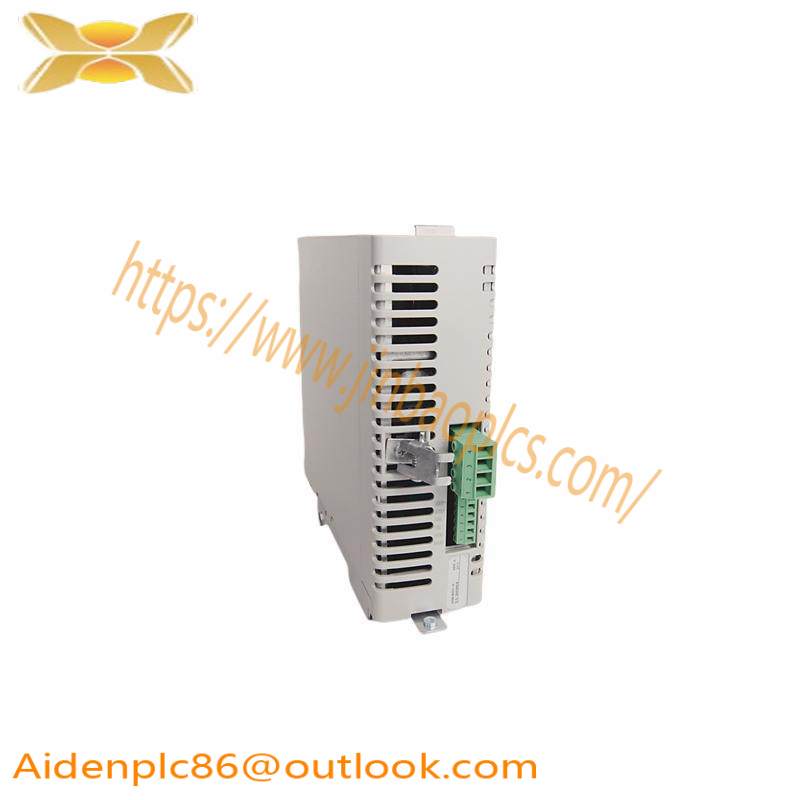

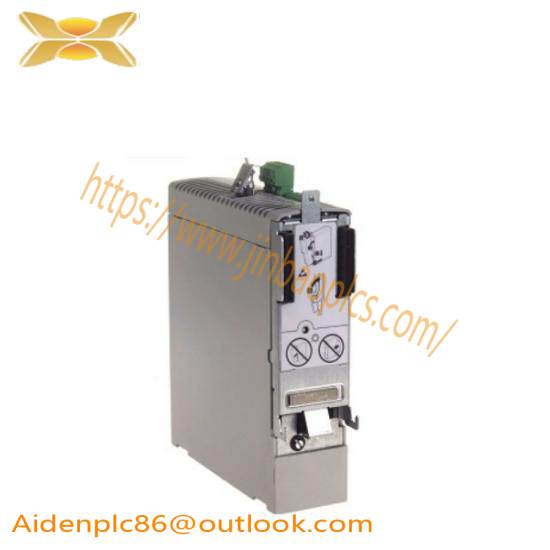

The Allen-Bradley 2094-BM01-S is an integral part of the Kinetix 6000 Multi-Axis Drive Servo system, designed to enhance machine performance and productivity. With its robust design and advanced safety features, this module ensures reliable and efficient operation in industrial environments.
This axis module supports up to seven (7) for each 8-axis power rail, making it ideal for multi-axis applications. It operates with a wide input voltage range of 324-528V rms, 3-phase, ensuring flexibility and compatibility with various industrial systems.
Safety is a top priority with the 2094-BM01-S, featuring an integrated Safe Torque Off (STO) function that complies with Safety Integrity Level (SIL) 3 and Performance Level (PLe). This ensures personnel protection and minimizes downtime due to unexpected faults.
The module’s high efficiency of 98% and low heat dissipation of 57-126 Watts make it energy-efficient and cost-effective, reducing operational costs and improving overall machine performance. Its robust design and reliable operation make it suitable for demanding industrial applications.
With a continuous output power of 3.9 kW and peak current ratings of 8.6 A, the 2094-BM01-S delivers consistent and powerful performance, meeting the demands of modern industrial automation.
