Input Voltage (AC):230 to 480 Volts
Operating Frequency (Hz):47 to 63
Nominal Input Current (A):7
Continuous Output Current (A):11
Intermittent Output Current (A):22
Dimensions (WxHxD):242.2 x 360.7 x 138.7 mm
Control Interface:RS232, RS485, DeviceNet
Communication Protocol:SERCOS
Encoder Compatibility:Multi-turn Absolute Encoders
Environmental Conditions:5% to 95% Relative Humidity, Non-condensing
EMC Compliance:Meets Directive Standards
Overvoltage Protection:Up to 810 Volts DC
Continuous Output Power:5 Kilowatts
Electrostatic Discharge Sensitivity:Yes
Installation Precautions:Static Control Measures Required

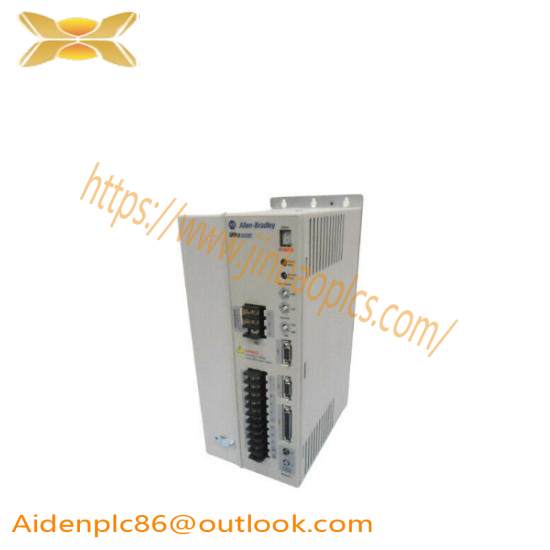

The 2098-DSD-HV150-SE4 Drives Kinetix 6000 series are designed to enhance your industrial automation capabilities, featuring advanced control algorithms for optimized performance.
These drives are engineered to seamlessly integrate with Allen-Bradley’s ControlLogix Programmable Automation Controller (PAC) platform and SOFTLogix controller through the robust SERCOS communication protocol, ensuring reliable and efficient operation.
With a compact yet robust design, these drives deliver high torque and precision, making them ideal for applications requiring dynamic control and efficiency, from machine tools to material handling systems.
Equipped with advanced indexing features, they support complex motion profiles and enable smooth transitions between different operations, improving productivity and reducing downtime.
The 2098-DSD-HV150-SE4 drives come with a high-capacity AC line filter, which must be installed between the power source and the drive input, ensuring stable operation and protecting against power fluctuations.
