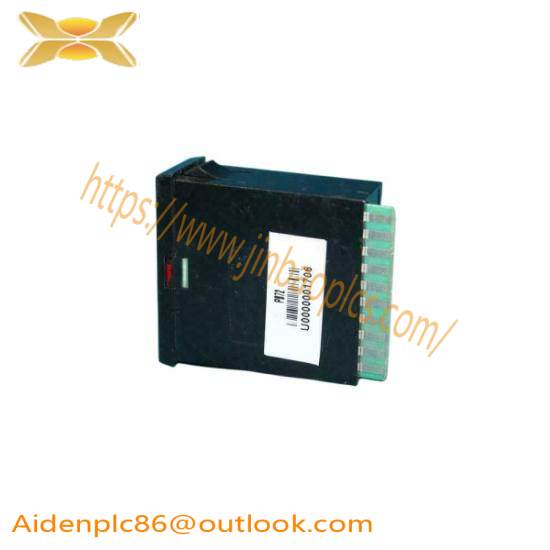

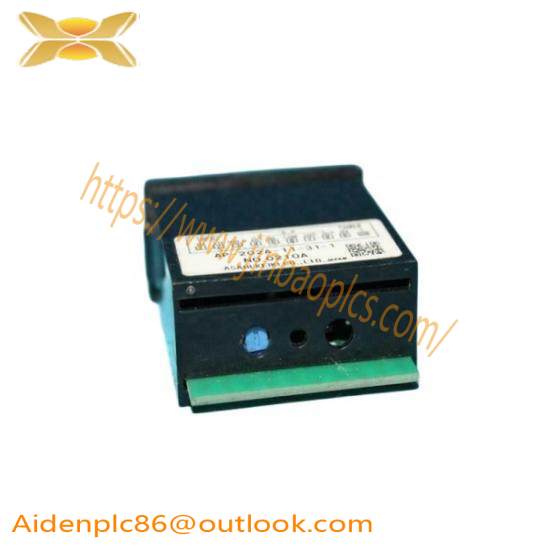

Asahi Keiki AP-102-13-11 Terminal Micro DC Signal Isolation Transmitter

Signal Isolation Type:DC

Isolation Voltage:1000Vrms

Input Range:-10V to +10V

Output Range:-10V to +10V

Power Consumption:Max 1.5mA

Operating Temperature:-20°C to +85°C

Enclosure Material:Dielectric resin

Size:36mm x 24mm x 12mm

Mounting Type:Panel

    The Asahi Keiki AP-102-13-11 Terminal type micro DC signal isolation transmitter is designed for applications requiring high-level signal isolation and noise suppression in harsh industrial environments. Its compact design allows for easy integration into existing systems without compromising on performance.

    Featuring a robust construction, this transmitter ensures long-term reliability, making it suitable for applications where downtime due to equipment failure cannot be tolerated. It supports both 4-20mA and 0-10V analog outputs, providing flexibility for various automation setups.

    With an isolation voltage of 1000V AC, it provides an effective barrier against electrical interference and ground loops, ensuring accurate and uninterrupted signal transmission. The transmitter’s accuracy, ±0.1% Full Scale, guarantees precise data representation, essential for critical control processes.

    The transmitter operates within a wide temperature range (-20°C to +70°C) and can withstand storage temperatures from -40°C to +85°C, making it ideal for diverse industrial settings. It consumes a maximum power of 1W, ensuring efficient energy use.

    For installation, the AP-102-13-11 requires minimal setup time due to its straightforward configuration options and compatibility with industry-standard protocols. Its compact size (85mm x 60mm x 20mm) and lightweight (90g) make it easy to integrate into confined spaces.
