GE IS200DSPXH1DBD: High-Performance Digital Signal Processor Control Board

Backplane Input Quantity:6

Board Description:Digital Signal Processor Control Board

Board Use Mode:Controller for Motor and Bridge Regulation

Functional Acronym/Abbreviation:DSPX

I/O Connector Quantity:3; P6, P1, and P5

LEDs:2, Status and Fault

Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters

Part-Specific Manual:GEI-100267B

Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus

    Engineered for the GE Mark VI Speedtronic line, the IS200DSPXH1DBD board serves as a core component in innovation series drives and EX2100 exciters.

    Equipped with a digital signal processor and an application-specific integrated circuit (ASIC), it ensures high-performance processing and precise control.

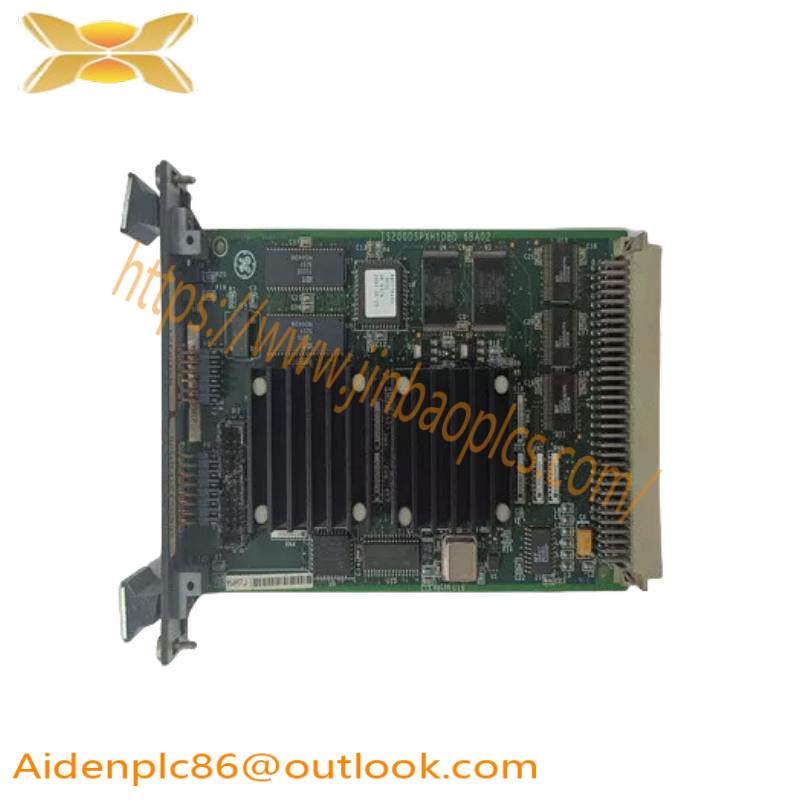

    The compact design, measuring as a small rectangular board with an attached front faceplate, facilitates easy integration into existing systems.

    Offering a versatile interface with three connectors (P6, P1, and P5), this board supports diverse communication needs, enhancing system flexibility.

    Equipped with two LEDs (Status and Fault), the IS200DSPXH1DBD provides real-time feedback on operational status, ensuring proactive maintenance and system reliability.
