Model:IS200EACFG1BAA
Category:Circuit Board
Manufacturer:General Electric
Series:Speedtronic Mark VI
Dimensions:L x W x H: 100mm x 60mm x 10mm
Weight:Approx. 0.08kg
Functional Revision:Revision 1
Application:Used in Excitation Systems for Turbine Controls
Operating Frequency:50Hz / 60Hz
Rated Voltage:1000Vrms +20%
Power Handling Capacity:Up to 1kW
Operating Temperature Range:-10°C to 50°C
The IS200EACFG1BAA Circuit Board is a critical element in the Speedtronic Mark VI series, tailored for high-performance control systems. It’s specifically designed for applications requiring robust excitation control in industrial environments, ensuring optimal system operation and reliability.
Featuring a G2 version, this board boasts enhanced performance capabilities, including a wide operating range of 1000 V RMS ±20% at 50/60 Hz, providing versatile compatibility across various industrial settings.

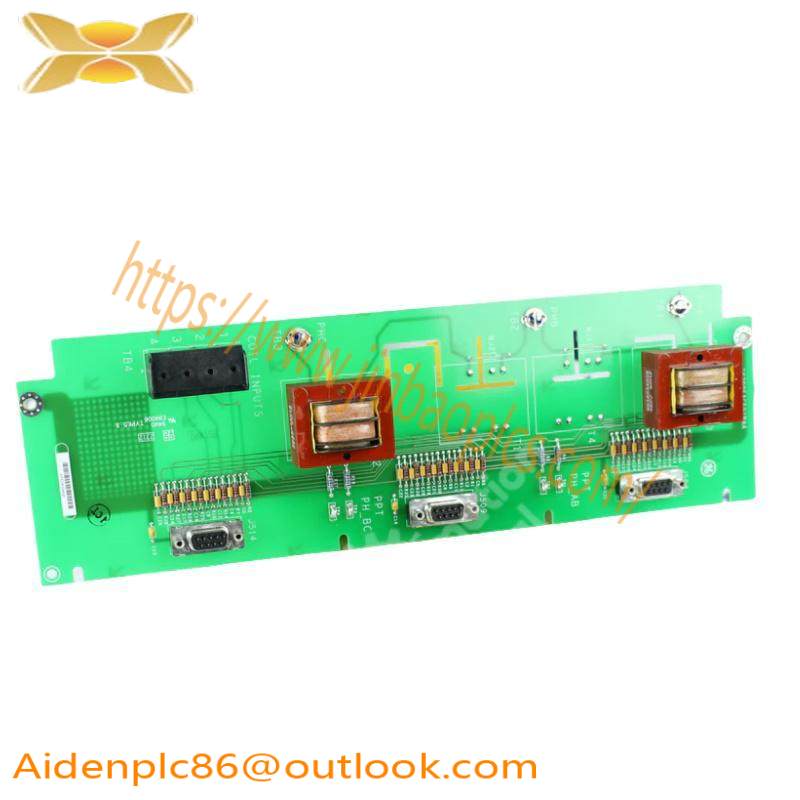

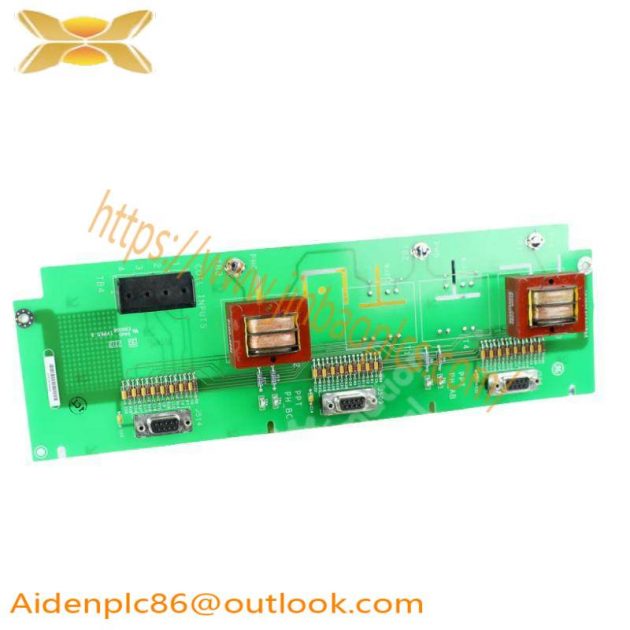

Equipped with a customized rectangular layout, the IS200EACFG1BAA incorporates four vertically aligned spaces labeled T1-T4. These spaces house transformers, essential for voltage and current transformations, contributing to the overall efficiency and accuracy of the control system.
Crafted from high-grade, corrosion-resistant materials, this circuit board ensures durability and longevity, minimizing maintenance requirements and downtime. Its design is meticulously optimized for seamless integration into existing industrial control systems.
Easy to install and integrate, the IS200EACFG1BAA Circuit Board comes with detailed installation guidelines and technical support, ensuring a smooth setup process for users. It supports various communication protocols, enhancing its interoperability with other control modules and devices.
