Rated Voltage:1200V
Continuous Current:75A
Peak Current:160A
Switching Frequency:20kHz
Temperature Range:-40°C to +175°C
Insulation Resistance:≥100MΩ
Operating Ambient Temperature:+5°C to +45°C
Package Type:TO-247
Cooling Method:Thermal Pad & Screw Terminals
Electrical Insulation:IP20

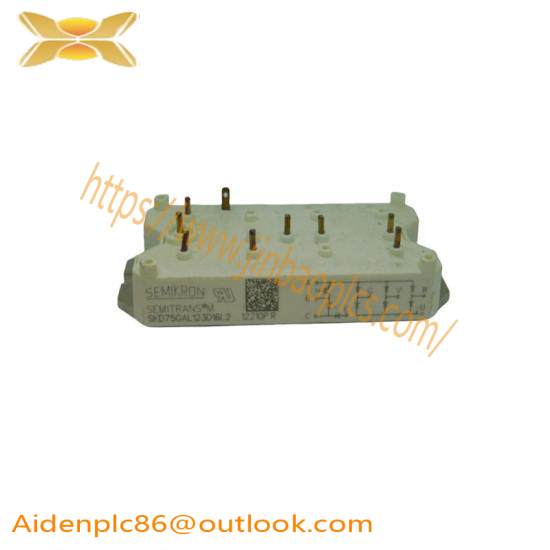

Semikron’s SKD75GAL123D16L2 IGBT Module is engineered for unparalleled performance in demanding industrial environments. This module boasts a power rating of 75kW, making it suitable for high-demand applications.
Equipped with a DC voltage rating of 1230V and a current rating of 1600A, it ensures robust operation under various conditions, providing exceptional reliability and efficiency.
With a switching frequency of 20kHz, the module optimizes energy transfer, enhancing system responsiveness and reducing heat generation. Its temperature range from -40°C to +170°C ensures operation across a wide variety of industrial settings.
The SKD75GAL123D16L2 comes with an operating lifetime exceeding 20 years, backed by a high insulation resistance of 1000MΩ at 1 minute, ensuring a long-lasting, dependable performance.
The cooling method, utilizing a thermal pad with a heat sink, facilitates efficient heat dissipation, preventing overheating and prolonging the lifespan of the module. This design choice also minimizes electrical noise, improving overall system stability.
