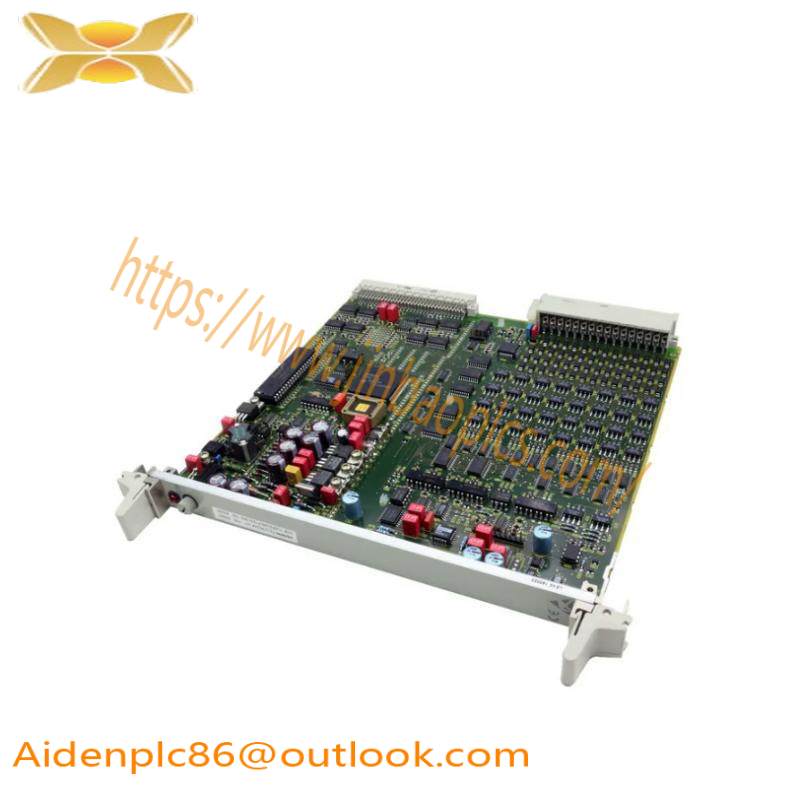

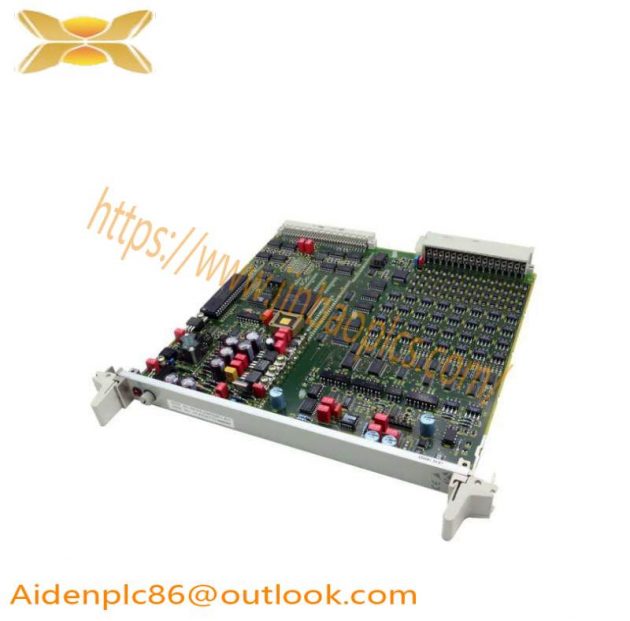

SIEMENS 6DP1232-8BA Analog Transmitter Signal Conditioning Module

Model Type:Analog Signal Conditioning Module

Model Number:6DP1232-8BA

Manufacturer(s):SIEMENS

Net Weight (kg):0.6

Dimensions:Not specified

Additional Information:MODULE FUM 232 ANALOG TRANSMITTER SIGNAL CONDITIONING MODULE 6DP12328BA FOR PT100 AND THERMOCOUPLE; TRANSMITTER SIGNAL CONDITIONING -14 PT 100 RESISTANCE THERMOMETERS WITH FOUR WIRES -28 THERMOCOUPLES OPTIONALLY WITH FIXED OR VARIABLE REFERENCE JUNCTION TEMPERATURE -MONITORING OF THE TRANSMITTER SUPPLY, MEASUREMENT RANGE OVERSHOOT AND UNDERSHOOT AND WIRE BREAK -SUITABLE FOR REDUNDANT USE BREAK -DIFFERENTIAL TEMPERATURE MEASUREMENT POSSIBLE -SUITABLE FOR REDUNDANT USE

Interface:PT100 and Thermocouples

Operating Range:-273°C to 1600°C

Supply Voltage:0V to 10V or 4mA to 20mA

Communication Protocol:Profibus DP

    The SIEMENS FUM 232 Analog Signal Conditioning Module – 6DP1232-8BA is engineered to provide unparalleled accuracy and stability in temperature measurement applications. This module is specifically designed for compatibility with Siemens systems and is ideal for industries where precise thermal control is critical.

    Featuring an innovative signal conditioning technology, it ensures optimal performance across a wide range of environmental conditions. It supports both PT100 resistance thermometers and various types of thermocouples, providing versatile solutions for diverse industrial environments.

    With its compact design and high-quality materials, this module offers enhanced durability and reliability. Its ability to monitor supply voltage, measurement range overshoot, and undershoot, along with wire break detection, ensures continuous operation without interruptions.

    Equipped with advanced features such as differential temperature measurement and redundant use options, the SIEMENS FUM 232 module optimizes system safety and efficiency. This makes it a preferred choice for applications requiring stringent thermal management standards.

    Easy integration with existing Siemens systems, thanks to its compatibility with Profibus DP protocol, simplifies installation and reduces setup time. Comprehensive documentation and technical support from SIEMENS ensure seamless implementation and ongoing maintenance.
