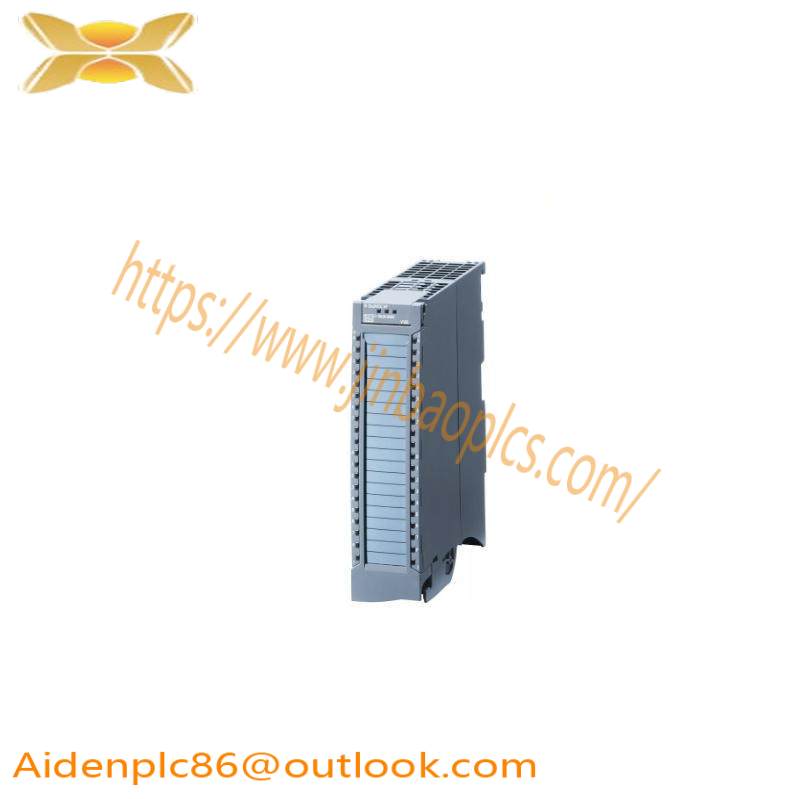

Model Type:SIMATIC S7-1500 Digital Output Module
Model Number:6ES7522-1BH00-0AB0
Manufacturer:SIEMENS
Net Weight (kg):0.339
Packaging Dimension:14.90 x 15.30 x 4.30 cm
Channels:32 channels in groups of 8
Current Capacity:4 A per group
Diagnostics:Single-channel diagnostics
Power Supply Voltage:24V DC
Load Voltage:DC 24V
Load Current:0.5 A
Switching Type:Source output (PNP)
Color Code:CC02
Substitute Value:Front connector (screw terminals or push-in) to be ordered separately
The Siemens 6ES7522-1BH00-0AB0 Digital Output Module is a cornerstone of industrial automation, featuring high-speed switching capabilities for seamless integration into complex control systems. This module is designed to handle demanding industrial environments, ensuring reliable operation under various conditions.
Equipped with advanced diagnostics, the module offers real-time monitoring of critical parameters, including short-circuit to L+ and ground, wire breaks, and supply voltage status. This proactive approach enhances system uptime and maintenance efficiency.
With 32 channels organized in groups of 8, it provides ample flexibility for configuring control loops and interfacing with various devices. The high-frequency switching ensures quick response times, critical for systems requiring precise timing and control.
Crafted with robust materials, the module withstands harsh industrial conditions, maintaining its performance over extended periods. Its compact size and efficient power consumption make it suitable for space-constrained applications without compromising on functionality.
Installation and integration are streamlined with user-friendly guidelines and compatibility with the entire Siemens SIMATIC S7-1500 family. This ensures easy setup and compatibility with existing automation infrastructure, minimizing downtime and simplifying maintenance.
