Power Rating (kW):0.4
Voltage (VAC):200 to 230
Rated Speed (RPM):3,000
Max Speed (RPM):5,000
Mounting Type:Base mounted
Encoder Type:Incremental
Bit Resolution:13 BIT
Constant Torque (Nm):1.27
Peak Torque (Nm):3.82
Brake:Yes
IP Rating:IP67
Approvals:UL; CE; cUL Recognized

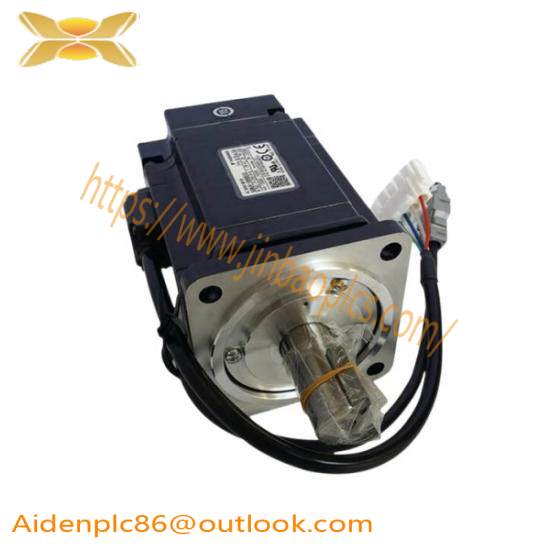

Engineered for demanding industrial environments, the YASKAWA SGMJV-04AAA61 brushless servomotor boasts a compact design optimized for space efficiency. Its brushless technology ensures minimal maintenance and long operational life.
Equipped with an incremental encoder, this servomotor provides precise position feedback, essential for achieving high accuracy in manufacturing and assembly processes. The 13-bit resolution encoder ensures reliable tracking of motor movements.
The motor’s constant torque output (1.27 Nm) is perfectly suited for applications requiring stable force control, while its peak torque (3.82 Nm) allows for quick acceleration phases without compromising on precision.
With a rated speed of 3,000 RPM and a max speed of 5,000 RPM, this servomotor is capable of delivering high-speed operations with smooth transitions, making it ideal for dynamic applications.
Featuring a flange mount design, it facilitates easy integration into various machinery setups. Additionally, the built-in brake system enhances safety by preventing sudden movement when the power supply is interrupted.
IP67-rated, the YASKAWA SGMJV-04AAA61 can withstand dust and water ingress, ensuring reliable operation even in harsh industrial conditions. The UL, CE, and cUL Recognized approvals guarantee compliance with international safety standards.
