Startup Time:6 ms max.
Control Velocity Output:-10 to 10 V
Data Backup:Backup using the CPU module
External Contact Output:Servo on, driver reset, and brake off
Encoder Type:Absolute or incremental (phase A/B)
Maximum Pulse Rate:2M pps max. / 4-time multiplication mode
Control System:Semi-closed loop control based on encoder feedback
External Contact Input:Limit switch, driver alarm, home

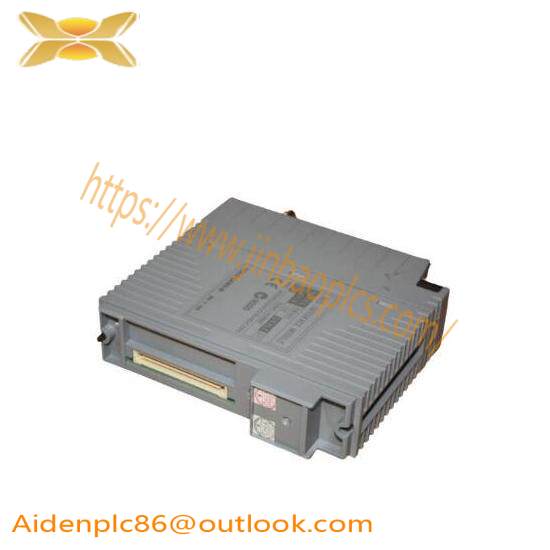

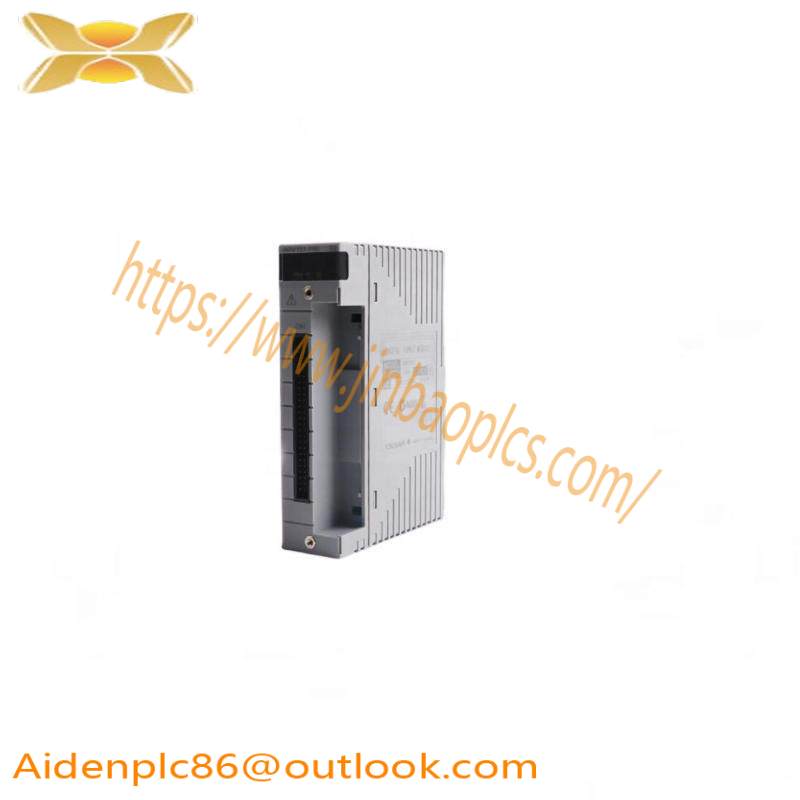

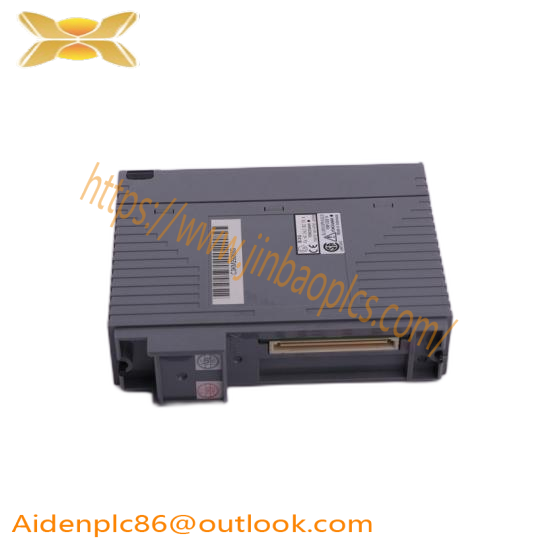

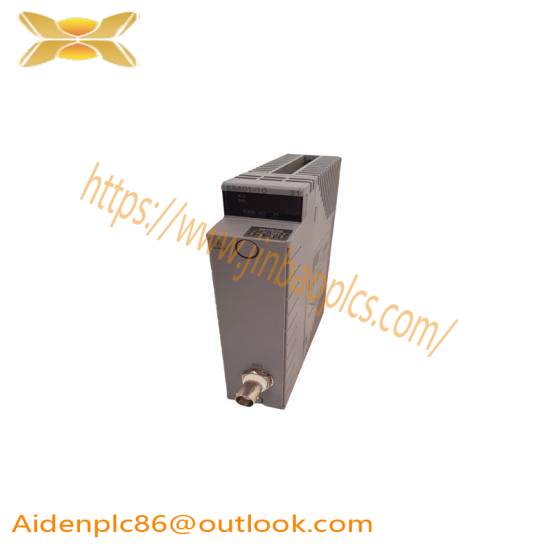

The YOKOGAWA F3NC02-0N industrial positioning module is engineered for high-precision applications where speed and accuracy are paramount. With a startup time of just 6 milliseconds, this module ensures quick response times, making it suitable for demanding industrial environments. The module provides velocity control output ranging from -10 to 10 volts, enabling smooth and precise control of machinery. For added reliability, data backup is facilitated through the CPU module, ensuring uninterrupted operation even in the event of power fluctuations or system failures. The external contact output features servo on, driver reset, and brake off functions, allowing for seamless integration with various motor and drive systems. Utilizing an incremental encoder (phase A/B), the module supports up to 2 million pulses per second (Mpps) in 4-time multiplication mode, delivering exceptional precision and responsiveness. The semi-closed loop control system is based on encoder feedback, providing robust performance and stability. Additionally, the module includes external contact inputs for limit switches, driver alarms, and home position detection, further enhancing its versatility and ease of use.
